Biometric System
DM-FRS-400
RS-485 Network interlocked with DM-CNV-100

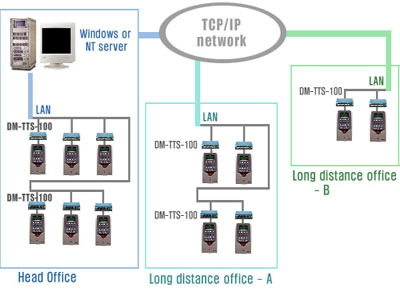

TCP/IP Network interlocked with DM-TTS-100
The above system can also be connect directly between TCP/IP network using DM-TTS-100 and RS485. It is also possible to remote control of all areas which can be connected to Internet(TCP/IP) using DM-TTS-100 and implementation of RS-485 Network under a single DM-TTS-100 with ease and practice. With the above set-up it will be possible to allow a headquater base in a certain country Eg.London, Singapore to check in real-time the performance and entrance of remote staffs in Paris subsidary or New York subsidary etc.
|
Model |
DM-FRS-400 |
Output Port |
Relay 1 |
|
Power Supply |
12VDC (Adapter) |
Communication Interface |
RS422/485 or RS232 |
|
Consumable Power |
10W |
CPU |
AM188ES |
|
Ambient Temperature |
0 ~ 60 degree C |
RAM |
512KB |
|
Size |
150 X 230 X 50 |
ROM |
Flash type 256KB
Standard |
|
Verification Time |
Within a half second |
Casing Material |
Front ,Rear ,Side
- |
|
Memory Capability |
720/2000/4560 fingerprints |
Painting |
Power Spray Painting |
|
Log Data |
4,000 |
Keypad |
Rubber substance
|
| RS 485 Network |
| TCP/IP Network |
| Time and Attendance software |
| Access control software |
| DM-FRS-400 |
| DM-CNV-100 Converter |
| DM-TTS-100 Converter |
| DM-FDS-100 Fingerprint doorlock |
| Ordering information: DM-FRS-400 (Serial) DM-FRS-400 (TCP/IP) |
|||
|
To purchase the above DM-FRS-400 Fingerprint Controller / reader please call us at 65-67852171. If you need more information on this product or require a quotation on the above system to be implemented in your project please E-mail: sales@secureciti.com our sale and technical personnel will get back to you.All quotation will be provided by us on a no obligation basis. SecureCiti International (Biometrics Technology Division) Block 9010 Tampines St 93 #04-145 Singapore 528844 Tel 65-67852171 Fax 65-67863351 |
|||
|
|||
