Biometric System Converter

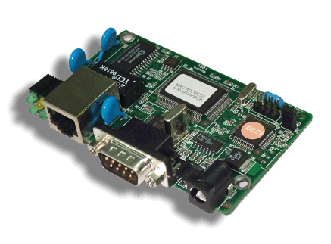

RS-232 and RS-485 converter
DM-TTS-100
Dimension
|
Model |
DM-TTS-100 |
Casing Material |
DM-FRS-400 Internal adhesion |
|
Ambient Temperature |
-40°C - 60°C |
Weight |
44g |
|
Size |
86[W] x 53 [L] x 16[H] |
Processor |
Ubicom SX52BD, 50 MIPS |
|
Power supply |
DC 7.5V, 120mA |
Memory |
32KB SRAM |
|
Connector |
Male DB9 RS-232 |
Protocol |
ARP, IP/ICMP, TCP/IP Server & Client, DHCP Client |
Features
| RS 485 Network |
| TCP/IP Network |
| Time and Attendance software |
| Access control software |
| DM-FRS-400 |
| DM-CNV-100 Converter |
| DM-TTS-100 Converter |
| DM-FDS-100 Fingerprint doorlock |
| Ordering information:
(RS-232 and RS-485
converter) DM-TTS-100 |
|||
|
To purchase the above DM-TTS-100 Converter please call us at 65-67852171. If you need more information on this product or require a quotation on the above system to be implemented in your project please E-mail: sales@secureciti.com our sale and technical personnel will get back to you.All quotation will be provided by us on a no obligation basis. SecureCiti International (Biometrics Technology Division) Block 9010 Tampines St 93 #04-145 Singapore 528844 Tel 65-67852171 Fax 65-67863351 |
|||
|
|||
